제품 상세 정보:
|

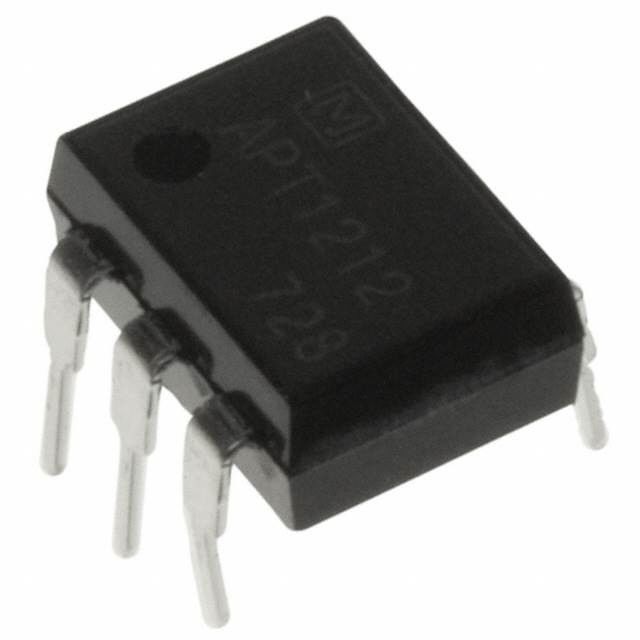

| 부품번호: | APT1212AX | 제조사: | 파나소닉 전기 공사 |
|---|---|---|---|
| 기술: | 광분리기 5KV 트라이액 6DIP | 범주: | 광분리기 - 트라이액, SCR 출력 |
| 가족: | 광분리기 - 트라이액, SCR 출력 |
| Part Status | Active |
|---|---|
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600V |
| Static dV/dt (Min) | 500V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 100mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 100µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.21V |
| Current - DC Forward (If) (Max) | 50mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm), 5 Leads |
| Supplier Device Package | 6-DIP |
| Approvals | cUR, VDE |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
