제품 상세 정보:
|

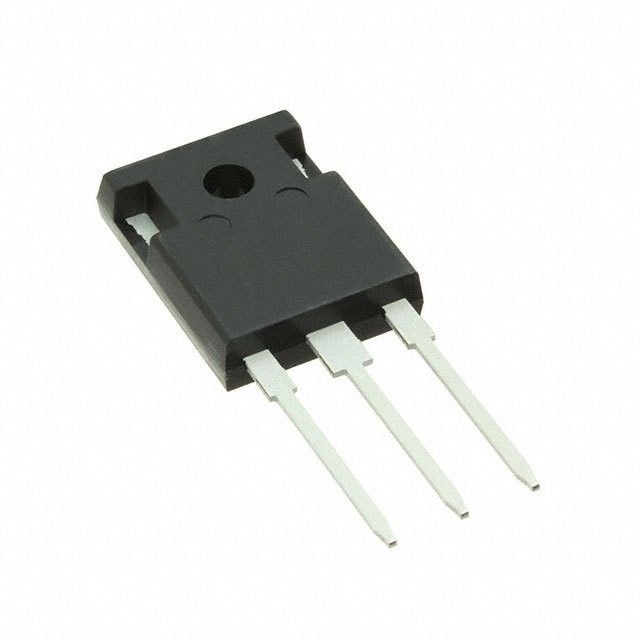

| 부품번호: | IHW20N120R5XKSA1 | 제조사: | 인피니언 테크놀러지 |
|---|---|---|---|
| 기술: | IGBT 1200V 40A 288W TO247 | 범주: | 트랜지스터 - IGBT는 - 단타를 날립니다 |
| 가족: | 트랜지스터 - IGBT는 - 단타를 날립니다 | 시리즈: | TrenchStop® |
| Part Status | Active |
|---|---|
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 40A |
| Current - Collector Pulsed (Icm) | 60A |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 20A |
| Power - Max | 288W |
| Switching Energy | 750µJ (off) |
| Input Type | Standard |
| Gate Charge | 170nC |
| Td (on/off) @ 25°C | -/260ns |
| Test Condition | 600V, 20A, 10 Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | PG-TO247-3 |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
담당자: Darek
전화 번호: +8615017926135
